Breakthrough in Traditional Machining: Electrical Discharge Machining (EDM) Process

 What is Electrical Discharge Machining (EDM)？

Electrical Discharge Machining (EDM) is a manufacturing process that shapes a workpiece by generating sparks through electrical discharges. A dielectric fluid separates two electrodes while voltage is applied, creating periodic, rapidly changing electrical discharges to remove material. One electrode is called the tool electrode, or simply the tool, while the other is the workpiece electrode, or simply the workpiece. During the EDM process, there is no physical contact between the tool electrode and the workpiece electrode.

History of Electrical Discharge Machining (EDM)  In 1943, Soviet researchers Lazarenko and Lazarenko were tasked with studying the phenomenon of tungsten electrode erosion caused by sparks upon contact. Although their research initially failed, they discovered that placing electrodes in a dielectric fluid allowed them to precisely control this erosion, leading to the invention of the EDM machine, which could process hard-to-machine materials such as tungsten. At the same time, in the United States, Harold Stark, Victor Harding, and Jack Beaver also developed an EDM machine. Initially, their attempts to create an electro-etching tool were unsuccessful. However, by utilizing stronger sparks, automatic repetitive discharge, and an electromagnetic interrupter arrangement for fluid displacement, they created a functional machine capable of generating 60 sparks per minute. Later, improvements to vacuum tube circuits allowed for thousands of sparks per minute, significantly increasing cutting speed.


 Differences in Electrical Discharge Machining

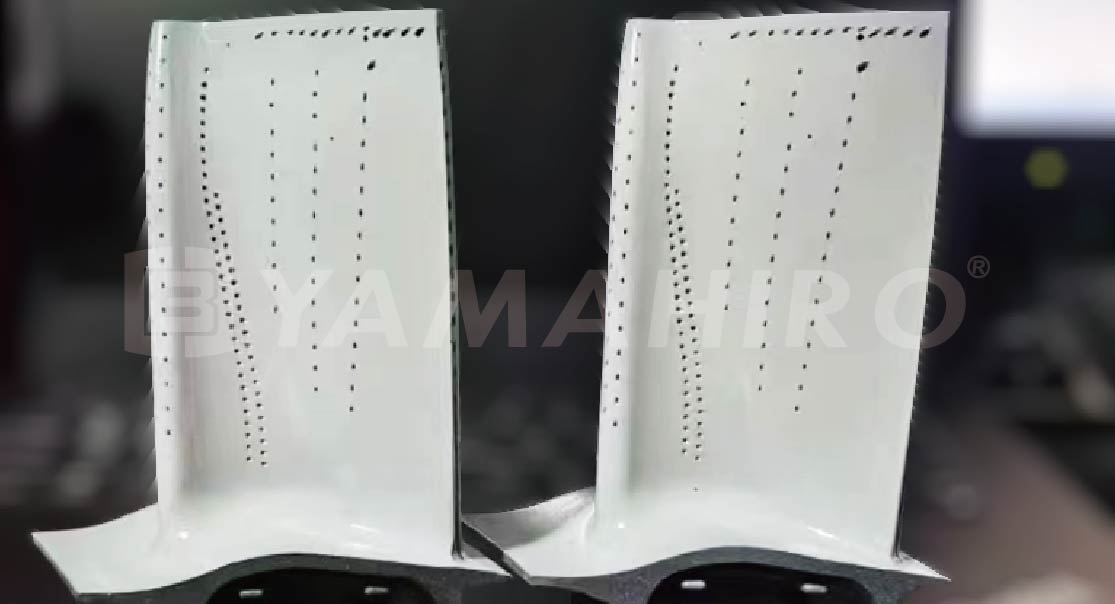

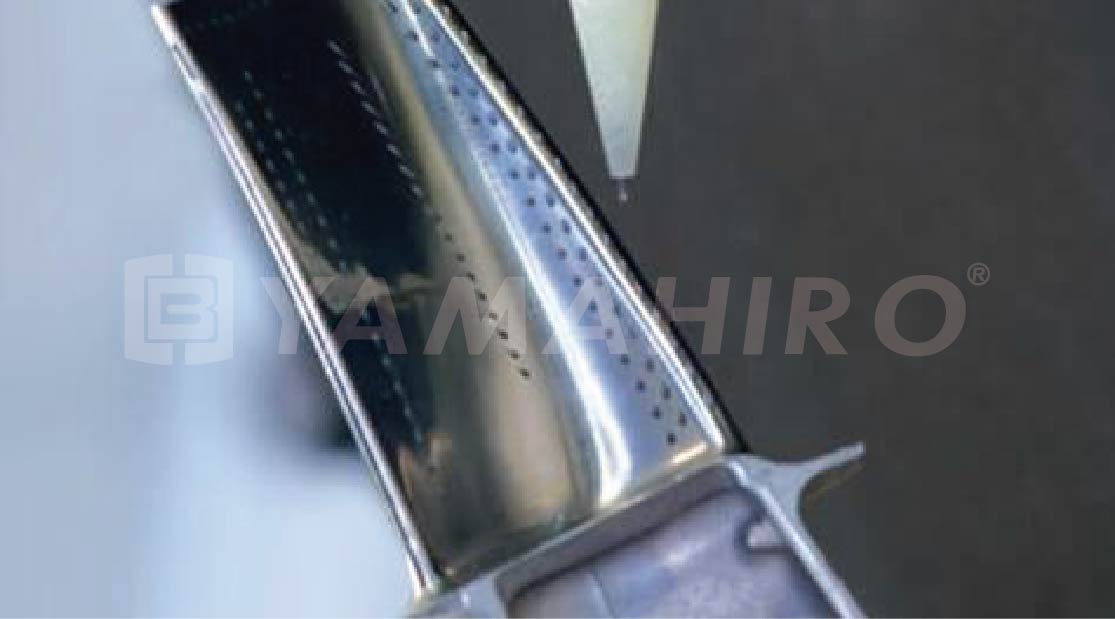

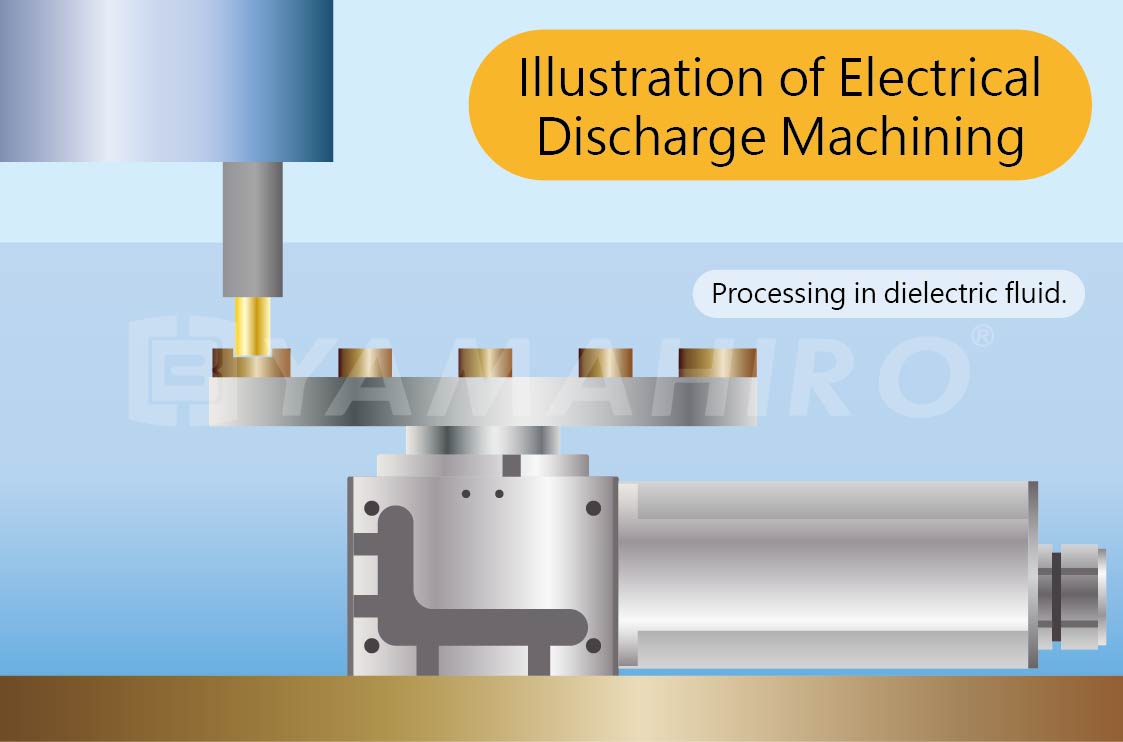

Considerations for Time Efficiency EDM provides fast machining speeds, and when paired with a suitable rotary positioning platform, it enables the machining of more complex components, expanding the range of applications. For example, in the aerospace industry, where intricate machining is required on curved or circular surfaces, an EDM machine combined with a waterproof high-precision rotary positioning platform allows for both precise and rapid processing.

 Applications of Electrical Discharge Machining

EDM is widely used in mold manufacturing and mechanical processing industries. It can process ultra-hard materials and complex-shaped workpieces that are difficult to machine using traditional cutting methods. EDM is typically used for machining conductive materials, allowing for the creation of intricate cavities or contours in hard-to-machine materials such as titanium alloys, tool steels, carbon steels, and hard alloys. The tool electrode is generally made of graphite or copper, and both the tool and workpiece are immersed in a kerosene-based working fluid, where the discharge process replicates the tool electrode's shape onto the workpiece.

 Conclusion

EDM is a precise and highly efficient machining process. When combined with a rotary positioning platform, it expands machining capabilities, making it ideal for processing complex shapes across various industries. Compared to many other manufacturing processes, EDM offers superior precision, efficiency, and cost savings, significantly enhancing the market competitiveness of the manufacturing industry.
