Home Information Knowledge Sharing Issue #2 High-Precision, High-Inertia, High-Rigidity Rotary Transmission Methods [2024-06-13]

An Overview of Transmission Methods in Rotary Mechanisms

Currently, the transmission methods for rotary mechanisms include hypoid gears, worm gears, helical gears, direct drive motors, roller gears, harmonic reducers, etc., each with its own advantages and disadvantages.

Hypoid Gears

Hypoid gears are gears with an offset axis added to a spiral bevel gear. Compared to spiral bevel gears, hypoid gears can achieve a high reduction ratio and high strength, with relatively low noise.



Hypoid gears are typically used in applications requiring high precision and smooth transmission, such as precision machinery, high-speed transmission systems, and precision instruments. The special gear design effectively reduces tooth surface pressure and gear tooth wear, enhancing the service life and reliability of the transmission system.

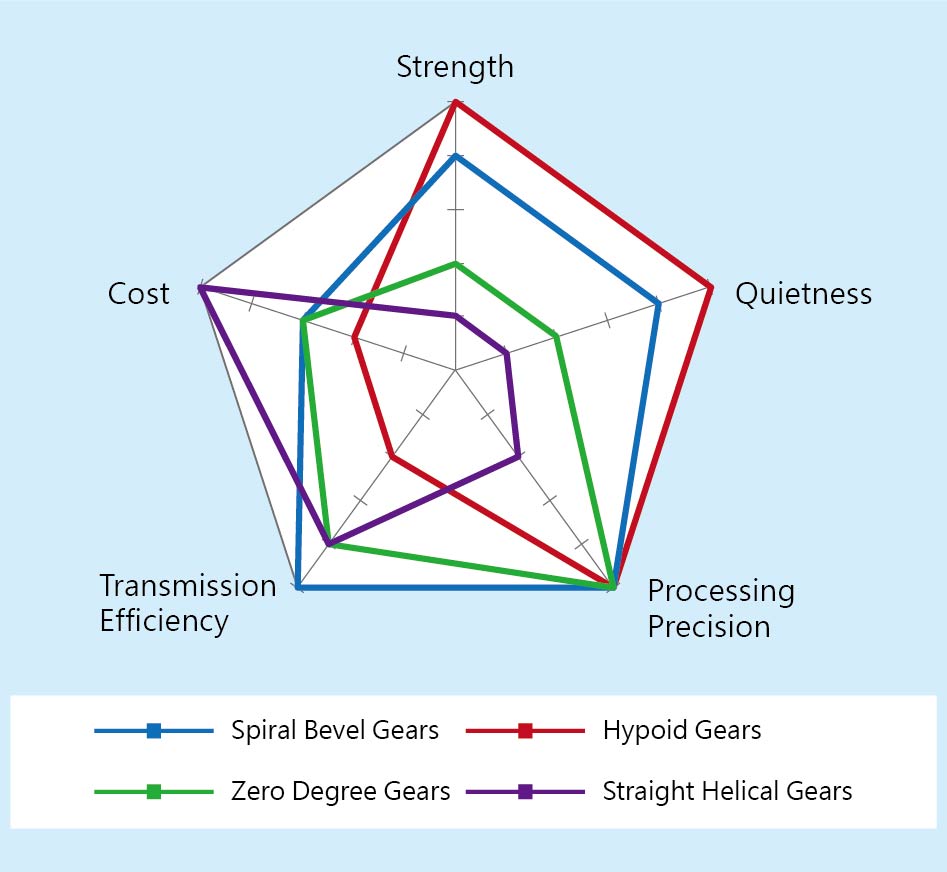

▼Comparison Chart of Various Gear Characteristics



Hypoid gears are designed to be lightweight and compact, without being constrained by space limitations. The use of high-strength materials ensures stability and reliability in high-pressure, high-load environments. These gears operate smoothly with low noise, have relatively low production costs, and are highly efficient. They are widely used in automotive and truck differentials, as well as in machine tools.



Application Example

Hypoid Gear Digital Control Rotary Positioning Table

The Digital Control Rotary Positioning Table uses hypoid gears as the transmission method to achieve high precision, high rigidity, and high inertia, enabling five-axis linkage surface process motion modules.

Hypoid Gear Digital Control Rotary Positioning Table can be used in optical inspection, automated multi-station applications, lathe applications, grinding applications, robotic arms, automotive industry applications, machining applications, honing machines, etc.



Helical Gears

Helical gears consist of two or more gears with teeth arranged at an angle, typically between 10° and 45°. The angled design allows for smoother operation, as the gear teeth engage gradually, reducing impact and noise during meshing.

Helical gears are commonly used in mechanical systems requiring high precision and smooth motion, such as vehicle transmissions, machine tool drive systems, and industrial robots.



Worm Gears

Worm gears consist of a helical worm and a matching worm wheel. They can be used for position positioning devices and rotational tables in machinery, as well as power transmission devices. Common applications include high-ratio reducers, machine tool rotational positioning, handling positioning machines, and elevator hoists, or for changing the direction of power.

The worm gear transmission system operates through sliding contact. A single pair of gears can achieve a high reduction ratio, is integrally formed with high strength, produces low noise, and has self-locking capability.



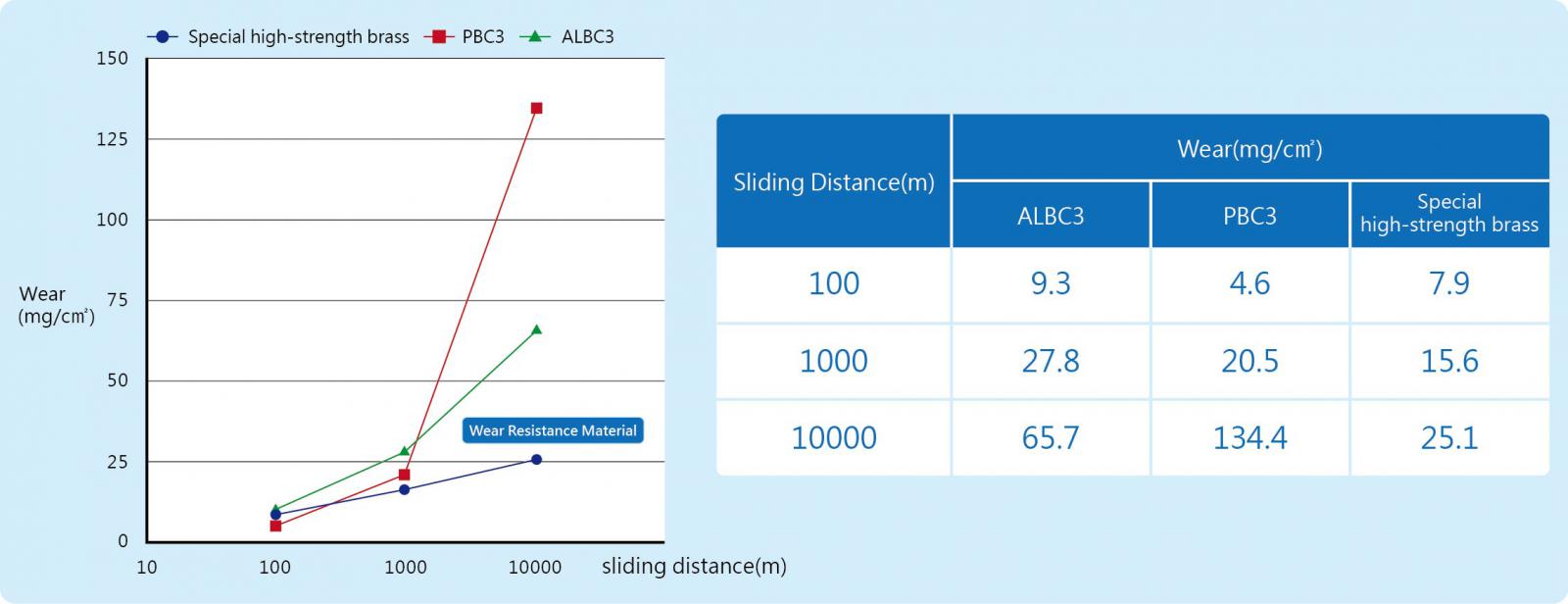

▼ Comparison Chart of Various Gear Characteristics

 Worm gears made in Japan use carbon steel and alloy steel for the worm shaft, which are relatively hard. To prevent surface abrasion, the worm wheel uses softer materials such as phosphor bronze and aluminum bronze.



Direct Drive Motors

Direct drive motors are motor systems directly connected to the load, without using a transmission system (such as a reducer or drive belt). They can directly convert motion into torque, offering advantages such as high precision, high speed, high torque density, and low noise.

Roller Gear Cam

The roller gear cam is used to convert rotational motion into linear motion. It consists of gears with raised teeth and rollers. The gear surface usually has a specific shape, such as an arc, ellipse, or other, depending on the required motion path. The rollers are small cylindrical elements that can roll on the gear surface.

Harmonic Reducers

Harmonic reducers achieve reduction effects using harmonic gear principles. They consist of three main components: the input shaft, harmonic generator, and output shaft. The input shaft drives the harmonic generator to produce harmonic motion, which is then transmitted to the output shaft, achieving the reduction effect.
