Home Information Knowledge Sharing Issue #5 Industrial Automation Core: Rotary Motion and Servo Control [2024-07-08]

Industrial Automation Core



Rotary Motion and Servo Control





With rapid technological advancements, modern manufacturing demands precise motion control. Rotary motion and servo control are widely applied in various industrial automation systems, including automated production lines, robotic arms, and precision machining equipment. Two-dimensional motion modules typically involve planar motion control, while three-dimensional motion modules require spatial motion operations. The design and implementation of these modules necessitate a comprehensive understanding of rotary mechanisms and servo motors to achieve high-precision and high-stability motion control.

This article explores the application of rotary motion and servo control in two-dimensional and three-dimensional motion modules, revealing their significance and application prospects in modern industry through theoretical and practical analysis.



Rotary Motion

Rotary motion refers to movement around a fixed axis, extensively used in various mechanical devices. In industrial applications, the precision and stability of rotary motion are critical for product quality and machining outcomes. Rotary motion typically relies on the collaborative efforts of speed reducers and servo motors.

Servo Control

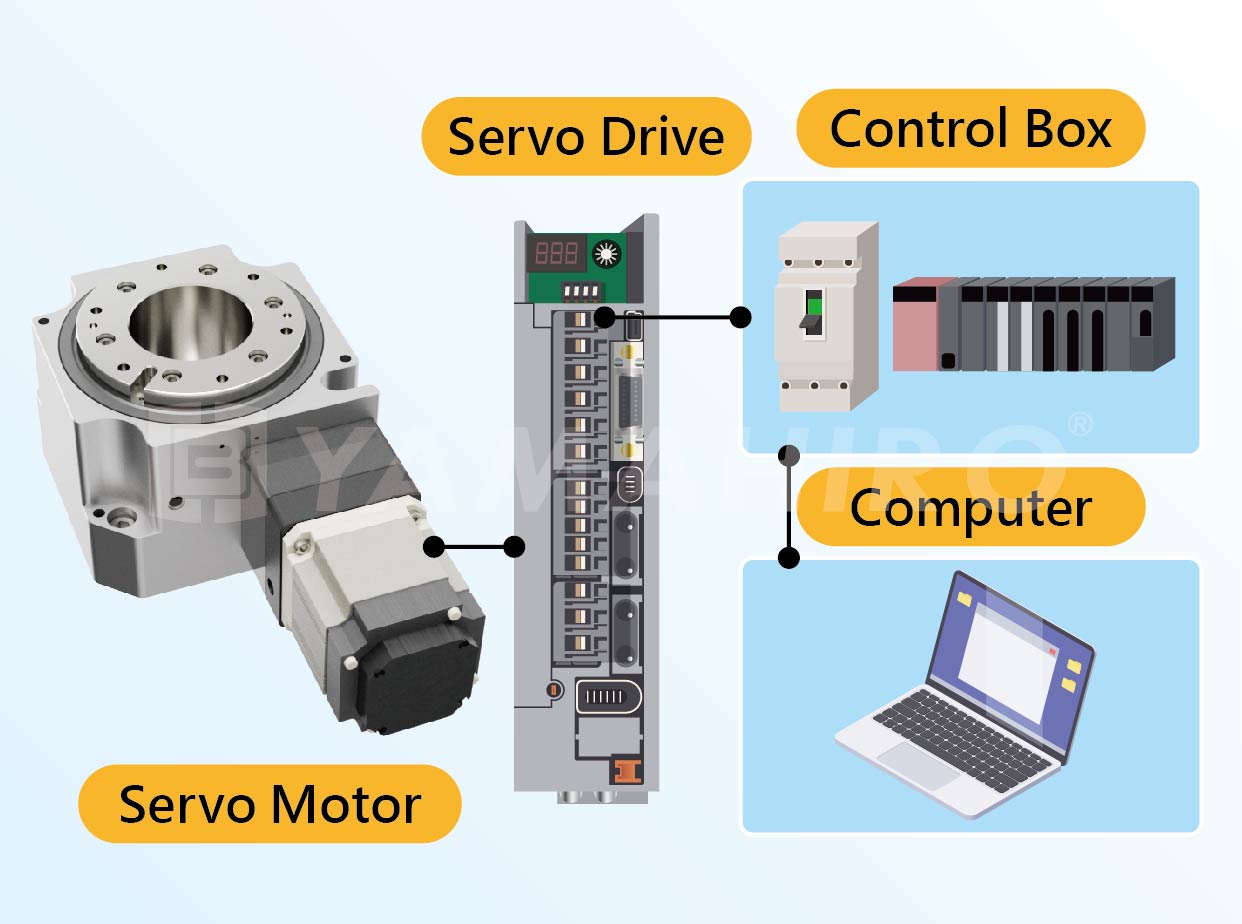

Servo control is an automatic control system used for precise control of mechanical equipment's position, speed, and acceleration. A servo control system consists of a servo drive, a servo motor, and a controller. The servo drive receives commands from the controller, drives the servo motor for precise movement, and adjusts motion parameters in real-time through a feedback system, achieving high-precision control.



Fundamental Principles of Rotary Mechanisms and Servo Motors

A rotary mechanism is a mechanical transmission device used to reduce the motor's speed and increase its torque output. In rotary motion control, speed reducers can effectively enhance the system's operational stability and precision. The selection process must consider factors such as transmission ratio, load capacity, inertia, and efficiency to meet specific application requirements.

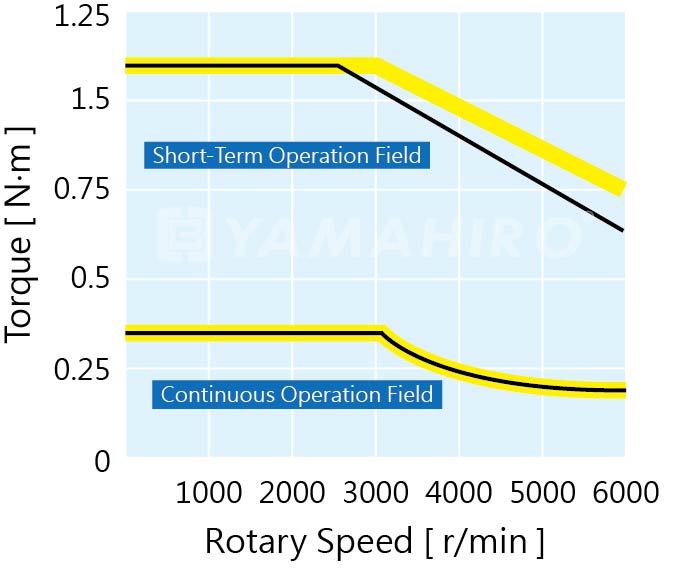

A servo motor is a high-performance motor characterized by quick response, high precision, and high stability. Selection should be based on application requirements, considering parameters such as power, speed, torque, and control precision to achieve the desired movement and accuracy of the rotary mechanism and motion module.







Applications in Two-Dimensional Motion Modules

In two-dimensional motion modules, speed reducers primarily reduce the servo motor's speed and increase its torque output. For instance, in printing machines, speed reducers ensure the smooth operation of printing rollers, preventing mechanical vibrations and printing errors caused by excessive speed. Servo motors drive mechanical components for precise motion, such as in CNC machines, where they accurately control tool position and movement speed, enhancing machining precision and efficiency.



Applications in Three-Dimensional Motion Modules

In three-dimensional motion modules, speed reducers not only need to reduce speed and increase torque but also ensure the synchronization of multi-axis linkage. For example, in robotic arms, speed reducers ensure coordinated movement of joints, enhancing the flexibility and precision of the robotic arm's motion. Servo motors drive multiple axes for complex spatial movements, such as in 3D printers, where they precisely control the movement path of the print head, ensuring high precision and quality of the printed products.







The application of rotary motion and servo control technology in modern industry is becoming increasingly widespread. Their significant impact on production efficiency and product quality is evident in two-dimensional and three-dimensional motion modules. The performance and selection of these components affect the overall system's operational efficiency. By deeply understanding the technical principles and application examples, we can better design and implement various industrial automation systems to meet the demands of modern manufacturing.
