Enhancing the Precision and Strength of Rotary Tables



Boosting Industrial Applications





Rotary tables play a crucial role in modern manufacturing, whether in automated production lines, robotic arms, or precision machining equipment. Their applications are extensive. With the rapid advancement of technology and increasing demands for product quality and production efficiency, the requirements for the precision and strength of rotary tables have risen.
This article delves into how the structural precision and strength of rotary tables affect their performance in various rotary applications. Through design principles, application analysis, and process inspection, we provide a comprehensive analysis of the factors influencing application performance.



Design Principles



The design principles of rotary tables involve multiple parameters and structural characteristics. Each factor affects the precision, stability, and durability of the rotary table. Understanding these design elements helps improve the performance of rotary tables in various industrial applications.

enlightenedSpindle Strength

The strength of the spindle impacts the operational stability and precision of the rotary table. It is usually determined by material selection, heat treatment, and machining accuracy.

enlightenedBody Strength

The body structure of the rotary table must provide high strength and rigidity to support the entire system's operation. High-strength alloys or special steel materials, processed with precision, ensure the body remains stable under high loads and high vibration environments.





▲ Herbao Hypoid Gear Digital Control Rotary Positioning Table uses high-strength steel materials with a high safety factor, ensuring stability and reliability under high pressure and high load environments.







▲ Herbao uses precise testing equipment to strictly monitor production processes, ensuring each product meets design specifications and quality requirements. Product yield rates consistently remain above 95%.





enlightenedBearing Strength

Bearings must have high strength and wear resistance. Using high-quality ball bearings or roller bearings, with proper lubrication and sealing, ensures long-term stable operation.



enlightenedGear Precision and Strength

The precision and strength of the gear system affect the stability and positioning accuracy of the rotary table. Gears must undergo precision machining and heat treatment, and strict quality inspections ensure their tooth profile accuracy and strength meet design requirements.



enlightenedTolerance Fit

Strict control of tolerance ranges during the machining process and precise adjustments during assembly are essential for optimal fit between components.



enlightenedAssembly Techniques

The assembly process must follow standard operating procedures to ensure the precise installation of each component. This includes preload control, lubrication treatment, and rigorous inspection and calibration. Attention to detail determines the final product's performance and lifespan.





Application Analysis

When applying rotary tables in real-world scenarios, several factors need to be considered, including stress, operating torque, and deformation.

enlightenedStress

The stress experienced by a rotary table during operation affects its structural stability and durability. For example, the four-axis YH320+ tailstock + middle base can effectively distribute stress under a load of 600 kg, avoiding damage from stress concentration points. Uniform stress distribution ensures long-term stability under high-load conditions, making it suitable for applications such as machining.



▲ Example: Four-axis YH320 stress and deformation SIM analysis



enlightenedTorque

Torque refers to the amount of force needed during operation. The rotary table RHD150 can withstand a torque of 264 N.mm, enabling it to operate in high-load and high-torque environments, such as lathes and grinding machines.





▲ Example: RHD150 rotary table hanging torque and inertia SIM analysis



enlightenedDeformation

Deformation refers to the degree of change when subjected to external forces. The RHD150 rotary table, with a load of 40 kg, maintains low deformation during rotation, ensuring high precision and stability of machined parts. Lower deformation indicates higher rigidity, suitable for applications requiring high precision and stability, such as precision instruments and optical equipment.

enlightenedLoad Distribution

Load distribution impacts the operational smoothness and precision of the rotary table. The four-axis YH series is designed to address load distribution issues, enabling smooth operation under high-load conditions, making it suitable for aerospace and mechanical manufacturing industries.





Process Inspection

During the manufacturing process of rotary tables, process inspection is a key step to ensure product precision and reliability. Understanding its structural characteristics and operational mechanisms involves parameters such as height, parallelism, platter vibration, platter wobble, spindle concentricity, repeatability, backlash, load, noise, and locating pin precision. These parameters determine the precision and stability of the rotary table and affect its adaptability in different industrial environments, thereby meeting the requirements for precision and strength in various complex processes.

enlightenedHeight

The height of a rotary table refers to the vertical distance from its base or mounting surface to the highest point. This parameter determines the horizontal and vertical installation space required for the table, affecting system stability and dynamic performance, and influencing the overall layout of the equipment.





enlightenedParallelism

Parallelism refers to the degree of alignment between the surface of the rotary table and its base, usually expressed as a deviation value. Poor parallelism can lead to inaccurate positioning during machining and instability during rotation.

enlightenedPlatter Vibration

Platter vibration refers to the deviation of the table's surface or edges relative to the bearing center during rotation. Excessive platter vibration can cause instability in machining and wear on mechanical components, affecting the quality of workpieces.

enlightenedPlatter Wobble

Platter wobble refers to the amount of oscillation of the rotary table's surface during rotation relative to a standard value. Platter wobble can affect the flatness and accuracy of machined workpieces.

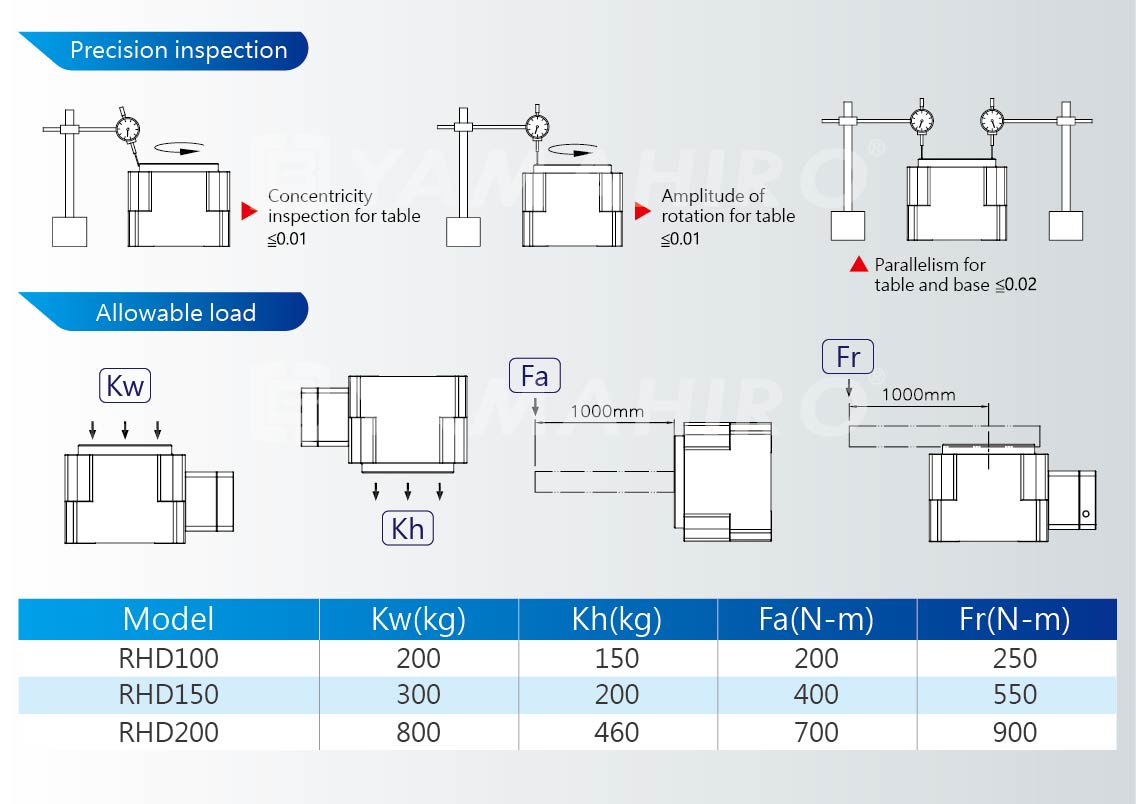

▲ RHD Series Rotary Table Process Inspection



enlightenedSpindle Concentricity

Spindle concentricity measures the alignment of the rotary table's spindle with its rotational center. Higher concentricity indicates greater spindle precision, reducing eccentric motion and ensuring machining accuracy and stability.



enlightenedRepeatability

Repeatability refers to the ability of the rotary positioning system to return to the same position in both directions after multiple positioning operations. This metric measures the system's accuracy in repeatedly positioning to the same spot, regardless of direction.



enlightenedBacklash

Backlash in a rotary positioning system refers to the gaps or spaces within the mechanical structure or material properties. This gap allows rotary components to slightly move when changing direction without immediately following the directional change. When the rotary positioning system changes direction, the presence of backlash causes a delay or lag until the system fully responds and follows the new direction.



enlightenedLoad

Load refers to the maximum weight or force a rotary table can bear. The structural design and material selection of the rotary table determine its load capacity, influencing the types of workpieces and operational conditions it can handle.



enlightenedNoise

Noise refers to the sound levels produced during the operation of the rotary table. Noise affects the comfort of the working environment. Excessive noise may result from mechanical issues or wear and tear.



enlightenedLocating Pin Precision

Locating pin precision refers to the accuracy of the locating pins on the rotary table. Precise locating pins ensure accurate alignment during installation and operation. Higher precision improves the overall positioning accuracy and stability of the table, preventing positional shifts during machining.
