Hypoid Gear Digital Control Rotary Positioning Table-RHD Series
RHD Series Catalogue Click here
Product Description
★ Product Features: High precision, high rigidity, high inertia / Five-axis linked surface machining, high precision two-dimensional rotary motion module.
★ Product Applications: Optical inspection, automated multi-position applications, lathe applications, grinding machine applications, robotic arms, automotive industry applications, machining applications, honing machines, etc.
Utilizing hypoid gears with a high reduction ratio of over 1:10 as the transmission method—its unique tooth shape reduces tooth surface pressure and gear wear. The lightweight design ensures it is not constrained by space, and it is more energy-efficient, operates smoothly with low noise, and has relatively low production costs with higher efficiency.
Specifications:
RHD100 / RHD150 / RHD200
RHD100B / RHD150B / RHD200B
_%E5%B7%A5%E4%BD%9C%E5%8D%80%E5%9F%9F%201%20%E8%A4%87%E6%9C%AC%208.jpg)

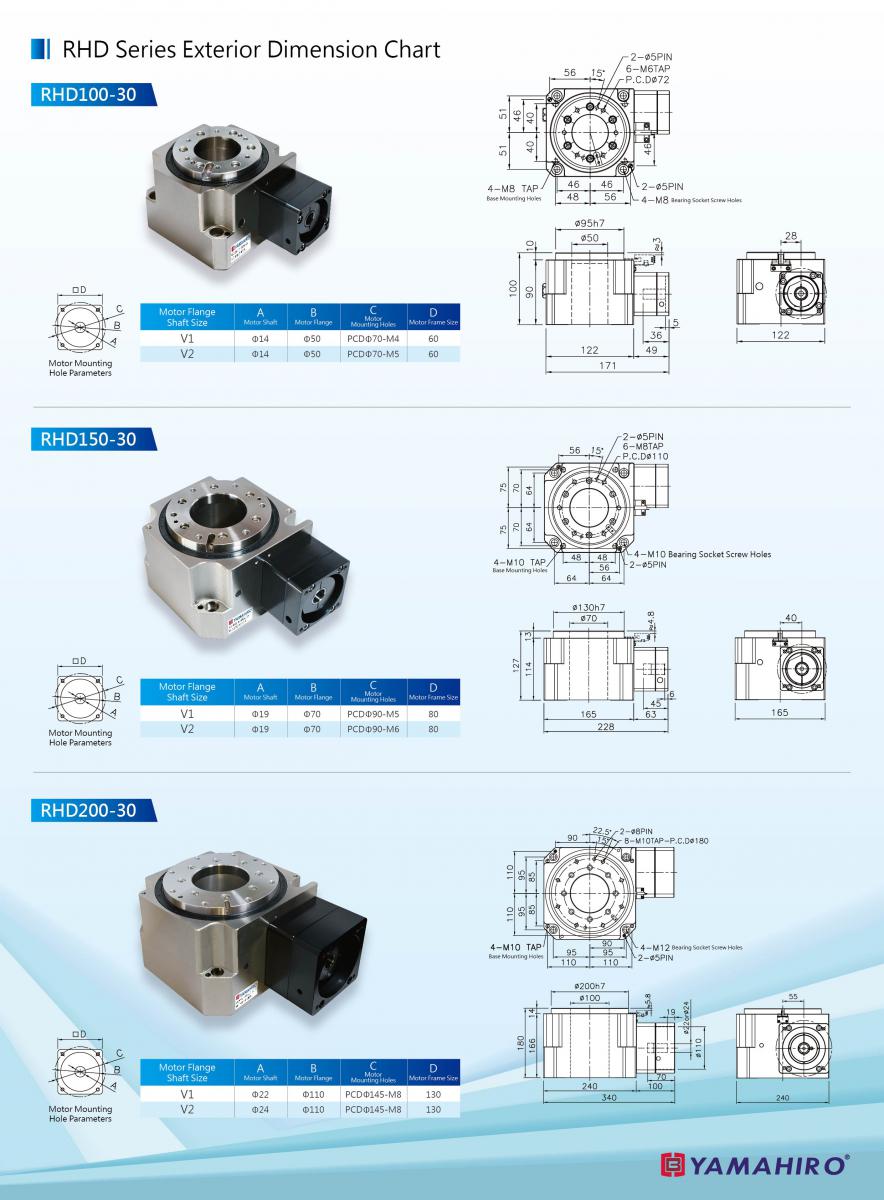

_%E5%B7%A5%E4%BD%9C%E5%8D%80%E5%9F%9F%201%20%E8%A4%87%E6%9C%AC%209.jpg)

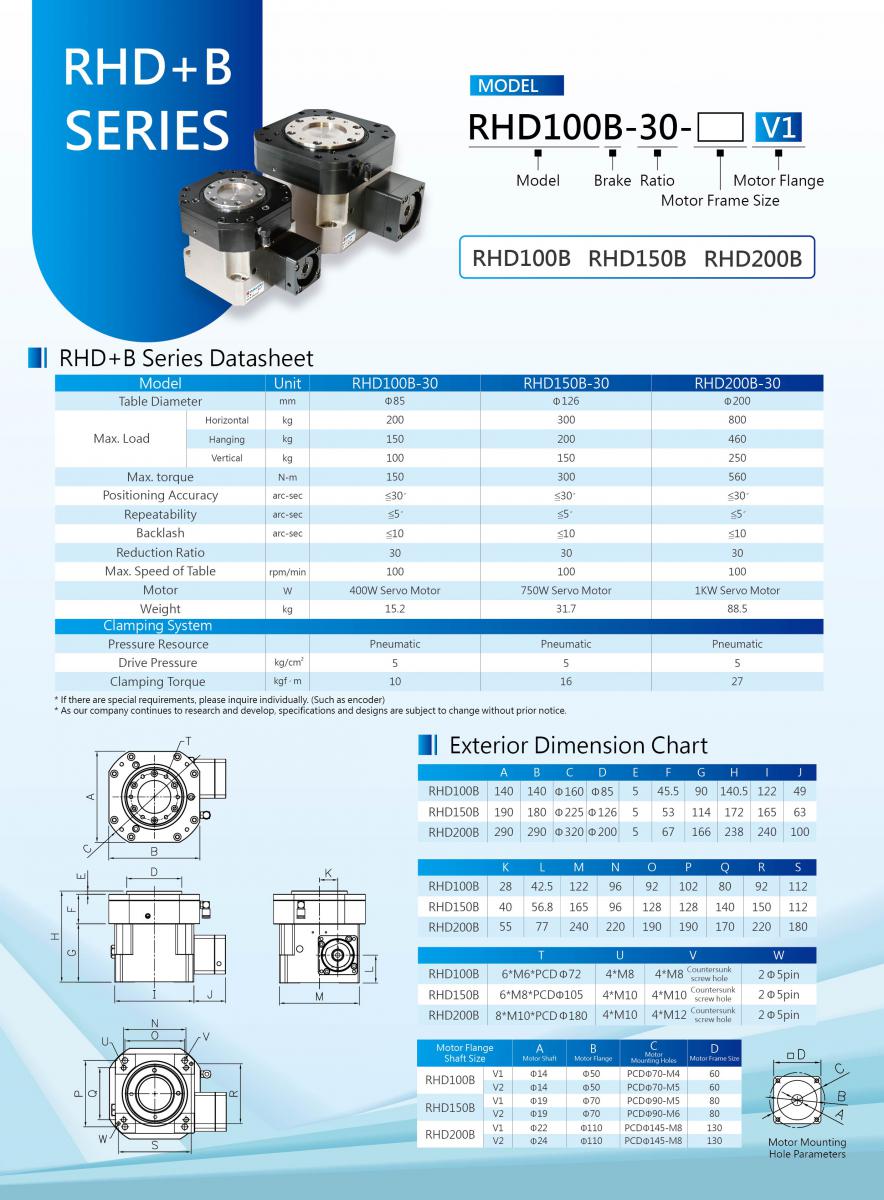

_%E5%B7%A5%E4%BD%9C%E5%8D%80%E5%9F%9F%201%20%E8%A4%87%E6%9C%AC%2010.jpg)
